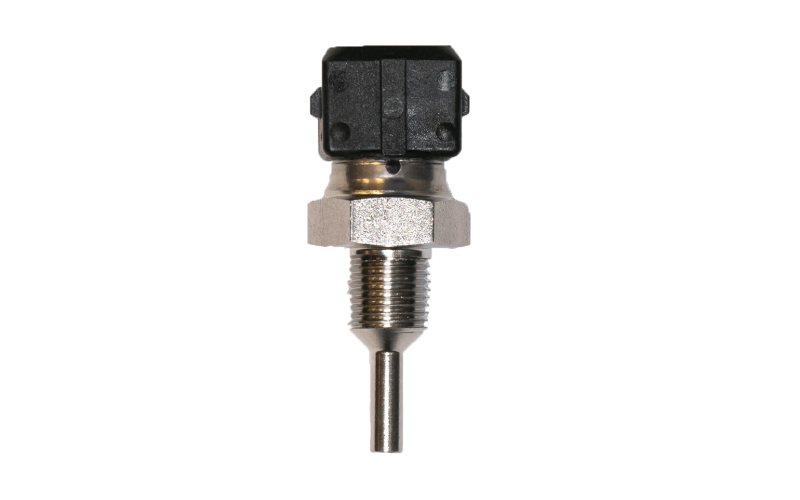

FuelTech Liquid Temp Sensor - SS300

SS300: Perfect for Engine Water and Trans Fluid Temp

High-quality stainless-steel sensor, designed for precision temperature measurements in demanding environments. With its durable construction and impressive accuracy, this sensor is ideal for monitoring fluid temperatures in performance applications. Built to withstand harsh conditions, it’s perfect for automotive, racing, and heavy-duty setups requiring reliable temperature tracking.

Thread Size: 1/8" NPT

Range: 0 to 300 Fahrenheit

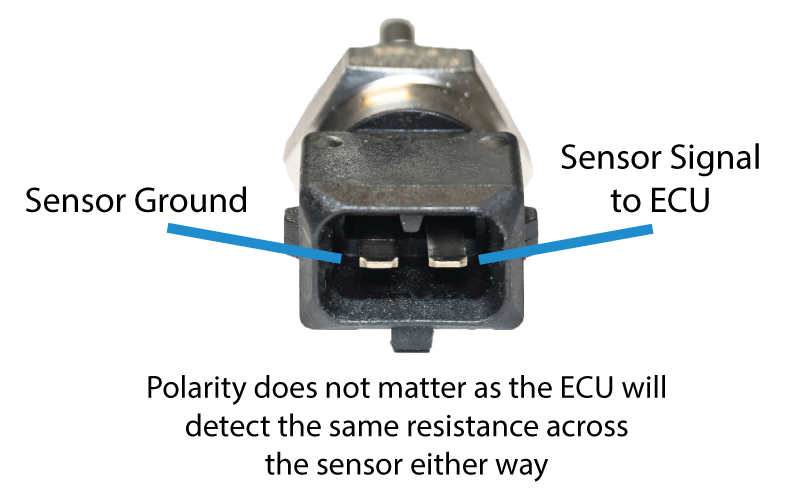

Pin A: Sensor Ground

Pin B: Sensor Signal to ECU

Polarity is not important with this particular sensor as the ECU will read resistance across the sensor regardless.

Connector: GM Delphi / Packard - Bosch EV1 Type Injector Connector Kit Push to Seat
