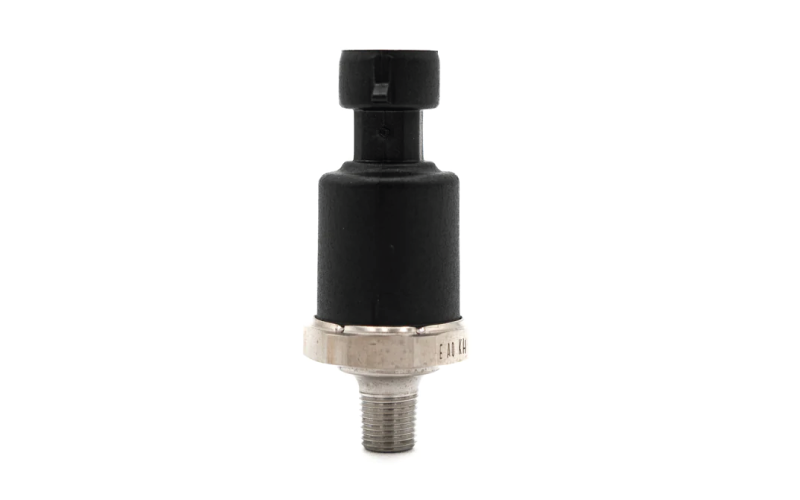

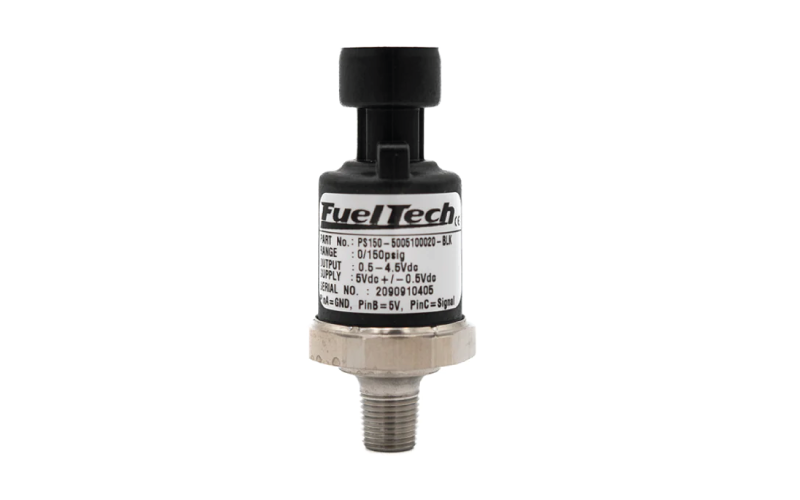

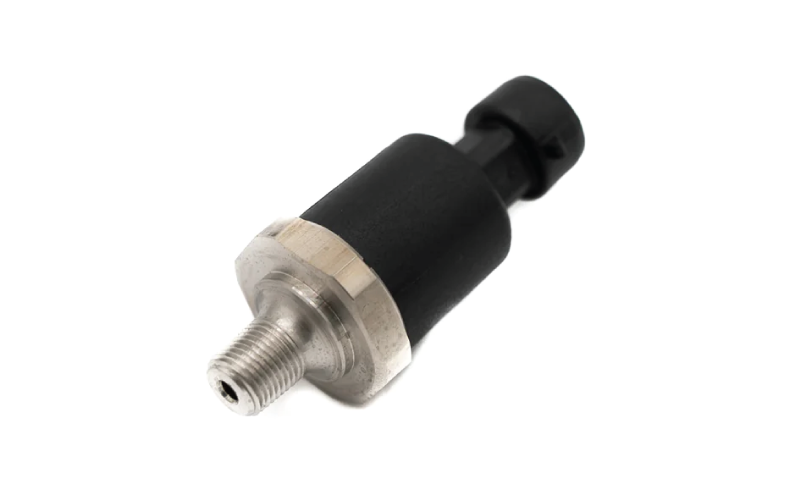

FuelTech Pressure Sensor - Fuel/Oil/WasteGate - PS150

PS150: Perfect for Fuel, Oil, WasteGate Pressure

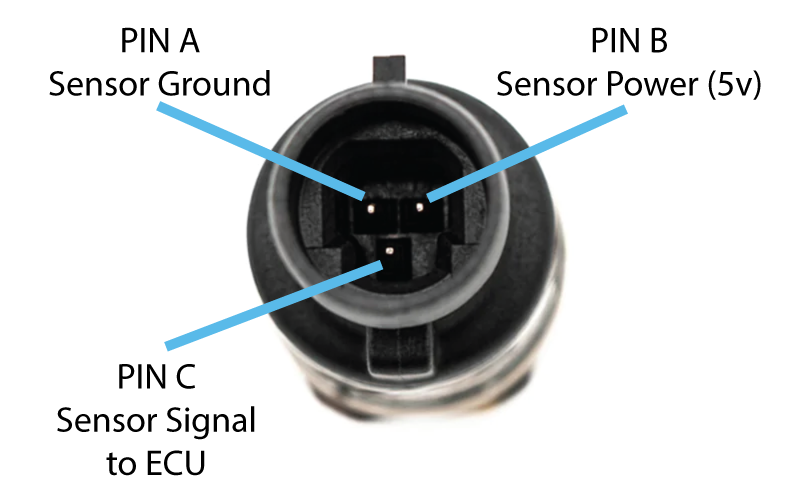

Pin A: Sensor Ground

Pin B: Sensor Power (5v)

Pin C: 0.5-4.5v Signal to ECU

Range: 0 psi to 150 psi

Thread Size: 1/8" NPT

Connector: GM Delphi / Packard - 3-way GT150 for 3-way MP 150.P2S (3 pin circular connector for sensors)
